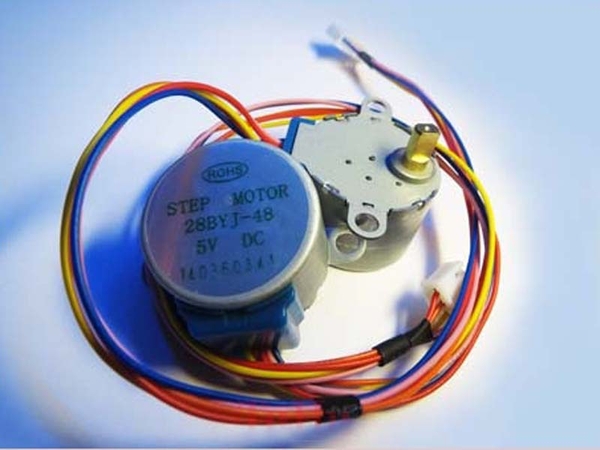

Động cơ bước 5v

Mã số sản phẩm : 1701348
30.000₫


Rated voltage : 5VDC

Number of Phase : 4

Speed Variation Ratio : 1/64

Stride Angle : 5.625° /64

Frequency : 100Hz

DC resistance : 50Ω±7%(25℃)

Idle In-traction Frequency : > 600Hz

Idle Out-traction Frequency : > 1000Hz

In-traction Torque  >34.3mN.m(120Hz)

Self-positioning Torque >34.3mN.m

Friction torque : 600-1200 gf.cm

Pull in torque : 300 gf.cm

Insulated resistance >10MΩ(500V)

Insulated electricity power :600VAC/1mA/1s

Insulation grade :A

Rise in Temperature  <40K(120Hz)

Noise  <35dB(120Hz,No load,10cm)

Model : 28BYJ-48
